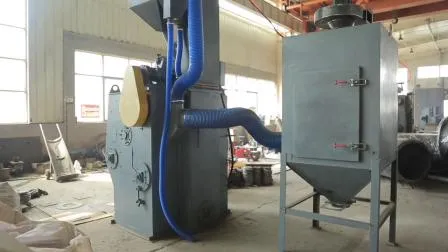

Small Tumblast Machine Tumble Belt Shot Blasting Machine

Basic Info.

Model NO.	Q32
Type	Crawler Abrator
Cleanliness	High Cleanliness
Automation	Automatic
Certification	CE
Feature	Rust / Corrosion Proof
Condition	New
Customized	Customized
Warranty	One Year
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Industry Used	Small Casting Parts, Forgings, Such as Nut, Spring
Exporting Experience	Since 2009, More Than 90 Countries
Spare Parts	Blade, Impeller, Distributor, Guard Plate, etc
Cleaning Process	Steel Shot and Other Abrasive
Use	Metal Rust Removing
Loading	Container
Industrial Experience	Over 20 Years Professional Experience
Wear Parts Material	High Chrome, Spmn13, Zgmn13, etc
Transport Package	Stretched Film or Nylon
Specification	CE, Sa 2.5
Trademark	Puhua
Origin	Shandong Province, China
HS Code	8424300000
Production Capacity	50 Sets/Month

Product Description

Supply Professional Customization Design Service. Can design most suitable machine according to your details requirement and workpiece!

The technological strength:
1.The first dedicated shot blasting machine for office building outside wall decoration marble in China; 2.The first dedicated shot blasting machine for aggrandizement floor grinding tool in China; 3.The first dedicated shot blasting machine for high-speed rail, filled the domestic blank in China; 4.The first dedicated shot blasting machine for crystalline silicon; 5.The first dedicated shot blasting machine for oil field special-purpose cable tray;

Tumblast shot blasting machine specification:
Features: Compact design, simple operating principle Forced but gentle turning and tumbling of the parts for all-round shot impingement Targeted high performance shot blasting for specific applications Continuous and thorough shot removalApplications: Descaling of forged or heat treated parts Desanding of ferrous and non-ferrous metal castings Deburring of metallic and non-metallic parts Deflashing of die cast parts Contaminant removal

The tumbling action of the belt conveyor ensures that components are continually exposed to the blast stream and completely cleaned. For easy unloading, the belt conveyor is reversed, delivering the components into the loading skip or stillage.Optimized shot blast effect: A. During shot blasting, the workpieces, regardless of size and shape, are evenly and continuously tumbled. This is necessary for the effective and uniform treatment of all surfaces. B. During tumbling, the workpieces continually undergo shot removal, enabling workpiece interiors and cavities to be perfectly cleaned C. For the complete removal of all shot, the final tumbling time that follows the shot blast sequence can be regulated to suit the type of workpieces being blast cleaned D. The tightly sealed, leak-proof blast chamber minimizes shot consumption.

Our service:
Our advantages:
Trade Information: MOQ: 1set. Settlement Currency: USD, RMB, EUR. Trade mode: FOB, CIP, CFR, CIF, DDU, DDP. Payment term: 30% deposit by T/T, the balance paid before delivery by T/T, or L/C at sight. Delivery time: Within 5-15 days according to different type machine.After-sale service: 1. Installation and commissioning issue: We will send one technician to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. 2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery. 3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.

Any question please kindly contact with us, and welcome to visit our factory in Qingdao China. George Xu Cell: +86 13310666957 Small Tumblast Machine Tumble Belt Shot Blasting Machine

Item	Unit	Q326	Q3210
Productivity	kg/h	600-1200	2500-3500
Feeding amount	Kg	200	800
Maximum weight of single piece	Kg	15	30
End plate diameter	mm	650	1000
Effective volume	m3	0.33	1.05
Abrasive flow rate	Kg/min	200	250
Dust removal air volume	m3/h	2500	4000
Power consumption	kw	13.6	25.6
Outside dimension	mm	320016503800	429019504500

1	Reply your inquiry in 8 working hours.
2	Experienced staffs answer all your questions in time.
3	Customized design is available.
4	Exclusive and unique solution can be provided to our customer by our professional engineers and staff.
5	Special discount and protection of sales are provided to our distributor.
6	We are professional manufacturer of shot blasting Machine. Have a professional design team with more than 20 years experience engineers, competitive with good quality.
7	As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
8	Prompt delivery, site installation and commissioning.

1	20 years professional production experience in shot blasting machinery industry.
2	22,000 m^2 production workshop, strong production capacity.
3	Professional senior engineer develop the best solution.
4	Strict quality control system, CE, BV, ISO9001 certificate available.
5	Main components adopt imported international famous brand.
6	Timely delivery, one hour to Qingdao port.
7	Professional after-sale service, Email will be reply in 24 hours.
8	Site installation and commissioning in your factory.
