Overview

Basic Info.

Model NO.	VMC1580
Type	Worktable Milling Machine
Structure	Bed type
Milling Cutter Type	Suitable for All Types of Milling Cutters
Controlling Mode	CNC
Automatic Grade	Automatic
Precision	High Precision
Certification	CE
Condition	New
Table Size	1700X800
Table Maximum Load	1500
X/Y/Z Axis Travel	1500X800X700
X/Y/Z Max. Feed Speed	10000
Spindle Speed	8000
Spindle Taper	Bt50
Net. Weight (About)	12000
Transport Package	Wooden Box
Specification	4260x3545x3200mm
Trademark	Sunshine
Origin	Shandong, China
HS Code	8457101000
Production Capacity	500

Packaging & Delivery

Package Size4300.00cm * 3500.00cm * 3600.00cm Package Gross Weight12000.000kg

Product Description

Q1: Can it be installed and debugged overseas?A: Yes, we will arrive at the customer's site as soon as possible to install and debug.Q2: Which countries have your equipment been exported to?A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.Q3: Are you a manufactuer or trading company?A: We are manufacturers. Q4: Are you in stock?A: It is in stock, depending on which model of equipment you choose.Q5: Can it be customized for us upon request?A: Yes, we have a professional technical team to meet your needs.Q6: What about the lead time for mass production?A: The time will be determined according to the quantity of the specific ordered products.Q7: How long will it take to ship?A: About 30-60 days, the specific time is subject to the actual situation.Q8: Packaging & Shipping: A: Packed in wooden cases and transported by shipping. Q9: What field is the product used in? A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.Q10: About the price? A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

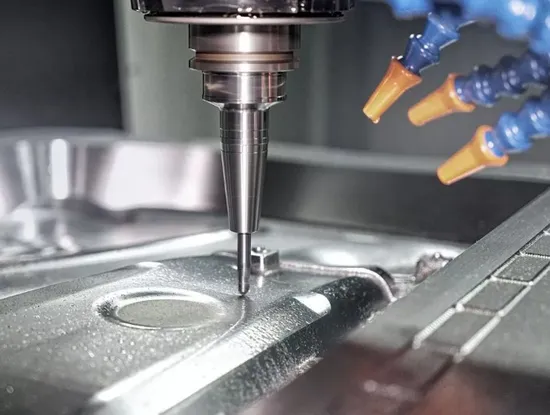

VMC1580 Vertical machining center mold processing precision CNC milling machine

Company Profile

Product Description

CNC vertical milling machines are widely used.

Precision parts for aerospace, medical equipment, mold manufacturing, etc.; Milling of special-shaped workpieces such as new energy vehicles and auto parts; Specific processing includes gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys and other parts.

Product Parameters

Specifications	unit	VMC1050	VMC1160	VMC1370	VMC1580
Table size	mm	1000x530	1200x600	1500x700	1700x800
Table maximum load	kg	600	1000	900	1500
X/Y/Z axis travel	mm	1000x500x600	1100x600x600	1300x700x700	1500x800x700
Distance between spindle centerand column	mm	580	650	752	871
Distance between spindle endface and worktable surface	mm	140-740	120-720	150-850	150-900
X/Y/Z Max. feed speed	mm/min	10000	10000	8000	10000
X/Y/Z Max. Rapid traverse	m/min	32/32/24	32/32/30	20/20/15	20/20/16
spindle speed	r/min	8000	8000	8000	8000
spindle taper	type	BT40	BT40	BT40	BT50
Spindle motor power	kW	7.5/11	11/15	11/15	15/18
X/Y/Z axis servo motor power	kW	3.9/3.9/3.6	4/4/5	4/4/5	4.5/4.5/4.5
X/Y/Z motor connection		Direct	Direct	Direct	Direct
X/Y/Z Guide way type		Line rail	third line	Two lines and one hard line	Two lines and one hard line
T slot	mm	5-18x90	5-18x100	5-18x145	5-22x145
Repeat positioning accuracy	mm	±0.004	±0.005	±0.005	±0.005
Tool magazine		disc type	disc type	disc type	disc type
Tool capacity		24T	24T	24T	24T
Maximum tool weight	kg	8	8	8	15
Max. tool length	mm	250/300	300	300	300
Electric capacity	kVA	15	18	22	30
Machine dimension(LxWxH)	mm	3200x2420x2400	3100x2490x2380	3600x3000x2700	4260x3545x3200
Net. weight (about)	kg	6000	7000	11000	12000

Optional

Standard configuration

1.GSK CNC system 2. Three axes use Taiwan guide rails 3. Tool magazine uses servo ATC tool changer or dual servo 4. Fully enclosed processing area

Optional
1. CNC system FANUC, SIEMENS, HNC 2. Three-axis HEIDENHAIN linear scale 3. Fourth axis motor, amplifier 4. Automation cell with articulated arm robot 5. Automation cell with truss manipulator 6. Chain plate chip conveyor (including hopper) 7. Scraper type chip conveyor (including hopper)

Detailed Photos

CNC system
CNC systems are mainly used for precise motion control and process adjustment to improve production efficiency, and real-time status monitoring and feedback.

Tool magazine
The tool magazine mainly provides a location for storing tools, and can correctly select and position the tools according to program control for tool exchange; the tool changing mechanism executes the tool exchange action.

Linear guides
The friction resistance of the linear guides in the machining center is rolling friction, which is very low, so the positioning accuracy and repeatability can be guaranteed even during rapid movement. Taiwan brand roller linear guides are used, and the rollers and guides are in line-surface rolling contact, which has higher rigidity and load-bearing capacity than ball guides.

Workbench
The worktable of the machining center is usually made of high-strength materials, such as high-quality cast iron or welded parts, and is treated with aging and secondary tempering to eliminate internal stress and ensure stable processing of the workpiece. This design enables the worktable to withstand greater cutting forces and workpiece weight, ensuring stability during processing.
